VSS Mod!



Vehicle Speed Sensor ByPass!
Updated: 02 APR 2002

Brought to you (in no particular order) by:
BOSS 3.0, SPORTboundRANGER, lowranger92 and the wizards at Ranger Forum 3.0L Board.

Warning:

    -I am providing this information for illustration and further understanding of the ECC-IV/V system only.
    It is only intended for OFF-ROAD Vehicles who's performance is hampered by the speed governor.
    (Your ¼ mile speeds won't pass 97, hurting your E.T., etc.)
    -You (the vehicle owner/operator/mechanic) are solely responsible for any fines, damage, mayhem, destruction, arrests, convictions, loss or liability incurred through this modification.
    -Never exceed the speed rating of your properly inflated/maintained tires.
    -You may void your vehicle warranty.
    -You may hurt yourself or others.
    -Speeding is illegal.

Other Potential problems:

    -Automatic transmissions lose shift reference and torque converter lock-up inputs.  Shifts may be late, labored or rough in "VSS Off" Mode.
    -Vehicles with the factory installed electric "Smart-Fan" have no speed inputs.  The fan may run at all speeds in "VSS Off" Mode.
    -Vehicles with an electric speedometer may lose speedometer function in "VSS Off" Mode.
    -The "Check Engine Light (or MIL) my illuminate in "VSS Off" Mode.  It will extinguish once VSS signals are sensed by the PCM.

Parts:

    -Any 12V On/Off switch.
    -Automotive grade electrical wire, of the same gauge as the VSS+ line.
    -Automotive grade electrical crimp connectors, suitable for the wire gauge used.
Tools:

    -Wire cutter/Crimper.
    -OR: Soldering iron, solder and heat shrink.

Directions:

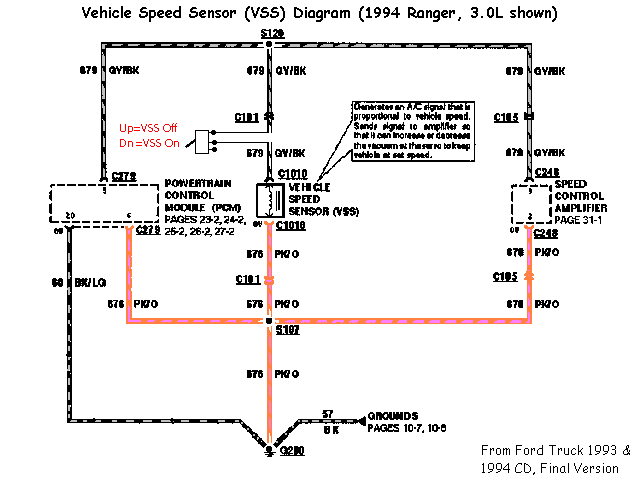

    -Quite frankly, if you can't figure it out from the drawing, you shouldn't be messing with it.
    Sorry if that seems rude, but this is serious.

The possibilities are endless!:
    -Install with a custom burned chip with No Rev-Limiter, and a 70 MPH Top Speed. Install a hidden (or key) switch for the speed, gives a "protected valet" feature.  Great if the kids want to borrow the car!
    -Nitrous Arm switch (2P/2T) connected with this (Nitrous Arm = No VSS)
    -Connect to a relay and use with the TPS (Voltage >4 = No VSS)
    -Connect to the WOT Relay (WOT = No VSS)

WebTV Users-Click the speaker. For PC users, I added a control bar.
(I know some of these songs can get annoying!)
Sorry, your browser doesn't support EMBED, but you can still listen to the background sound of this page by clicking <a href="55.mid">here</a>.
Featured track: Sammy Hagar: "I can't drive 55"
